Alert ESRI Map Requirements

Alert ESRI Map Requirements

To implement or transition to the map validation process in Alert Responder™, the following requirements must be met. After your map data is reviewed, the process should be thoroughly tested in your live training environment to ensure accuracy. Successful map validation depends on highquality map data—precision is essential.

Required independent map layers:

  • ESN

  • EMS Responding Agency

  • Fire Responding Agency

  • Law Responding Agency

  • Census Tract

  • Zip Code

  • City

  • Law Grid

  • Fire Grid

  • EMS Grid

Optional Layers based on user requirements and expectations

  • EMS Reporting District

  • Fire Reporting District

  • Law Reporting District

  • Run Card

  • Subdivision Name

  • MABAS Box

  • Address Alerts

  • Intersections

  • Hydrant Data

  • Postal City

  • Township






For the address locators, the following fields are required:

Roads layer

  • street name

  • address ranges

  • community left and right

Address points

  • house number

  • street name

  • community


For network routing the following fields are required in the roads layer:

  • speed limit

  • one-way



Each map layer must include a layer ID that corresponds to the information in the database if one already exists. When creating a new database, consistent and appropriate naming conventions must be applied.

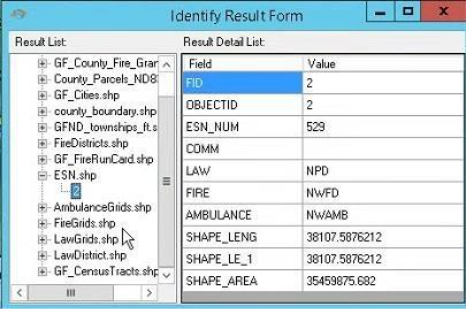

The map control settings must then be configured to ensure the correct information is retrieved during location validation. Two primary scenarios must be considered: point-based validation and intersection-based validation. Point-based validation, such as addresses or wireless locations, is straightforward. The system queries the shape files at the point’s location and returns the associated information. Intersection-based validation is more complex, particularly when the intersection lies between multiple shape files. In these cases, the dispatcher must determine the correct result using the left/right side settings defined in the map data.



It is critical that layer lines are continuous, without gaps, and that they align precisely with one another. This ensures that information can be retrieved from any location on the map. Although this requirement can be challenging, every shape within a layer must be complete to guarantee accurate and consistent results.
